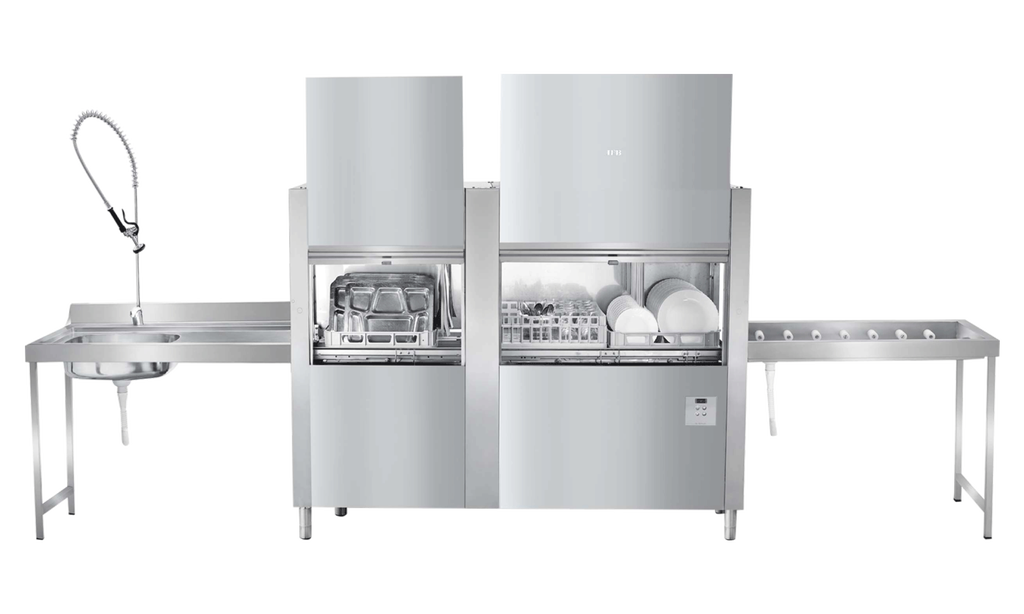

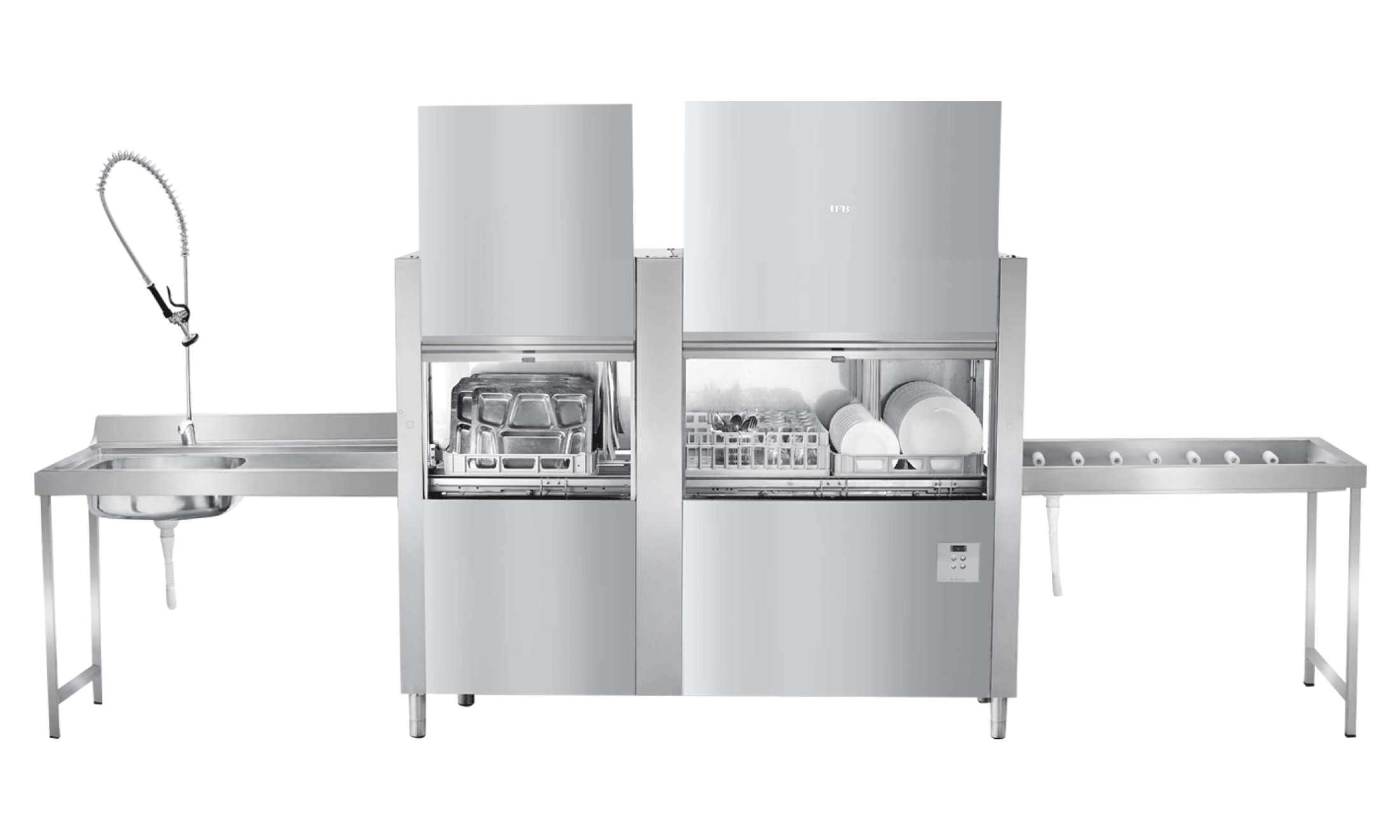

RC 154 Plus
Specification
Rack Conveyor Dishwasher

  • The RC 154 Plus is a high-productivity rack conveyor dishwasher that can wash up to 200 baskets per hour, perfect for medium to large-size operations. It is equipped with an 820 mm long, heavy-duty, pre-washing module with Blade Technology and is able to clean up to 3,600 dishes an hour. Flexible and efficient, this dishwasher can be complemented with a wide range of optional elements to adapt the layout to specific demands or to add functionalities.
  • General
    • Net Weight (kg) 328
    • Dimensions (W x D x H - cm) 197 x 77 x 160
    • Rack Size (cm) 50 x 50
    • Warranty 1 Year
    • Included Components Detergent Pump, Rinse aid Pump,Wty card,Power cable,Installation & User Manual ,Electrical ckt diagram ,Installation Lay out,Rat mesh,Water inlet hose, Drain Hose, Glass basket,Dish basket, Cutlery Basket , Foot  leg for leveling
    • Net Quantity 1 Unit
  • Performance
    • Output with 50˚C Water Temperature 110 - 200
  • Aesthetics
    • General Construction Stainless Steel
    • Door Construction Stainless Steel
  • Key Features
    • Electronic Softstart Yes
    • Evolution drain system and drain pump Yes
    • Full double skin construction Yes
    • Partial Double skin construction Yes
    • Moulded Tank Bottom Yes
    • Fully Moulded Tank Yes
    • Wash system with DuoFlo pump Yes
    • Protect environment improvement system Yes
    • Smart Screen LCD interface Yes
    • ProSmart LED type electronic interface Yes
    • No. of standard wash programmes 2
    • Drain Pump Optional
    • Hygienic Wash Yes
  • Safety Features
    • ProStrain shock-proof composite material tank filter Yes
    • Shock Proof Plastic Pump Filter Yes
  • Technical Sepcifications
    • Water Consumption (L/Cycle) 270
    • With 15*C water feed (kW) 28.5
    • With 50*C water feed (kW) 22
    • With 50*C water feed (kW) and heat recovery system 23.5
    • Electric Connection (V/Hz/ph/N) 400/50/3/N
    • Required Electric Power (Kw/Amp) 29.5/50
    • Required Electric Power with Dryer (kW/Amp) 36/63
    • Required Water Pressure (Bar) 1.5 - 4
    • Required Water TDS 40 to 100ppm, Conductivity lower than 300 Micro Siemens
    • Rinse Temperature (°C) 80
    • Wash Temperature (°C) 60
  • Manufacturing,Packaging & Import Details
    • Importer's Details IFB Industried Ltd
    • Packer's Details Eurotec S.R.L
    • Country Of Origin Italy
  • Mainwash Module
    • Length (mm) 1150
    • Tank Volume (Ltr) 70
