ProTech 613 Plus
Specification
Under Counter Dishwasher

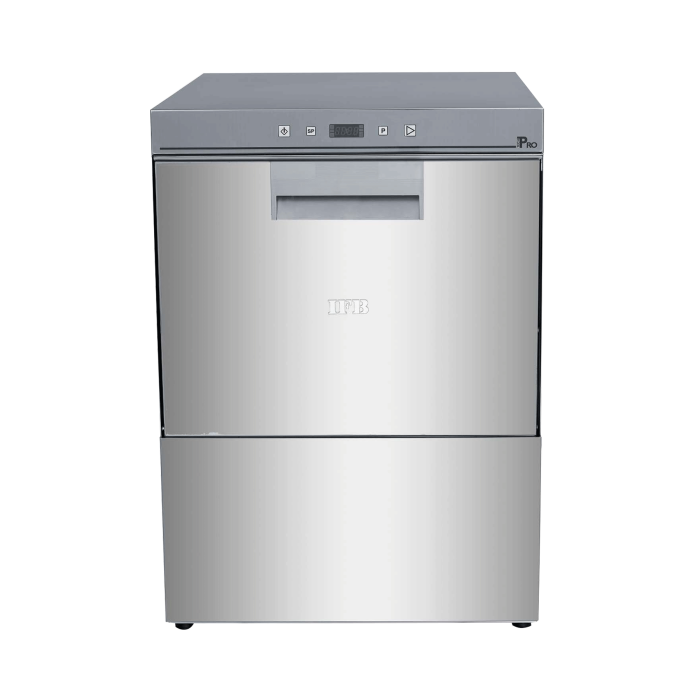

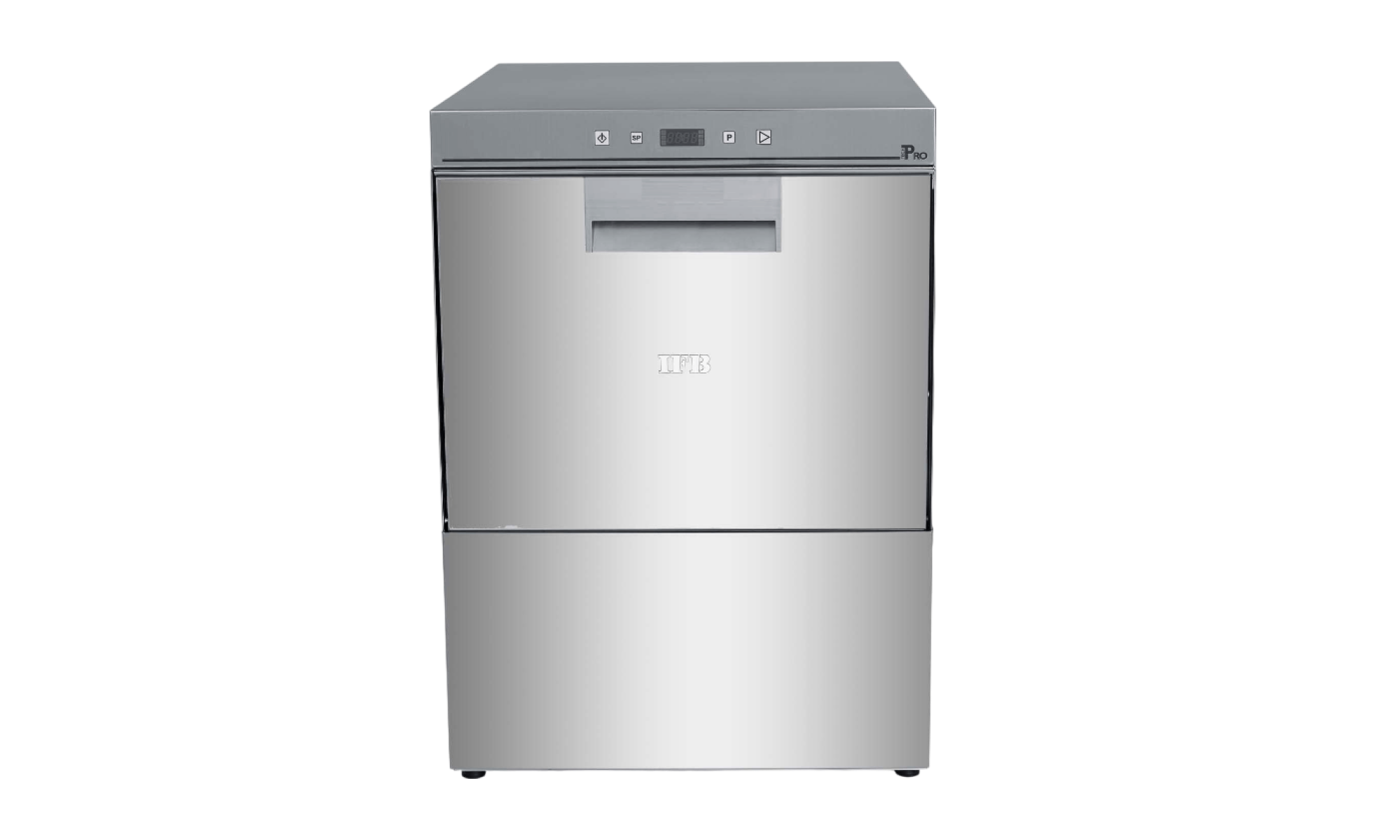

  • The ProTech 613 Plus is 82 cm tall with a door opening of 36.5 cm and deep drawn rack guides. Dishware up to 32.5 cm tall can be cleaned in this under counter dishwasher that operates silently with its dual flow pump and double skin door. It is equipped with Pro-Strain shock-proof composite material tank filter and a double filter on the pump intake. Water and detergent consumption is low, even as wash quality is high and hygienic.
  • General
    • Net Weight (kg) 62
    • Dimensions (W x D x H - cm) 57.5 x 60 x 82
    • Rack Size (cm) 50 x 50
    • Door Opening (W x H - mm) 36.5
    • Warranty 1 Year
    • Included Components Detergent Pump, Rinse aid Pump,Warranty card, Power Cable, Installation & User Manual ,Electrical ckt diagram, Installation Lay out, Rat mesh,Water inlet hose, Drain Hose, Glass basket, Dish Basket, Foot leg for leveling
    • Net Quantity 1 Unit
  • Performance
    • Output with 50˚C Water Temperature 50
    • Maximum Glass Height (cm) 32.5
    • Plate Length (inch) 18
  • Aesthetics
    • General Construction Partial Double Wall
    • Door Construction Double Wall
  • Key Features
    • Partial Double skin construction Yes
    • Moulded Tank Bottom Yes
    • Deep Drown, Easy Clean Rack Guides Yes

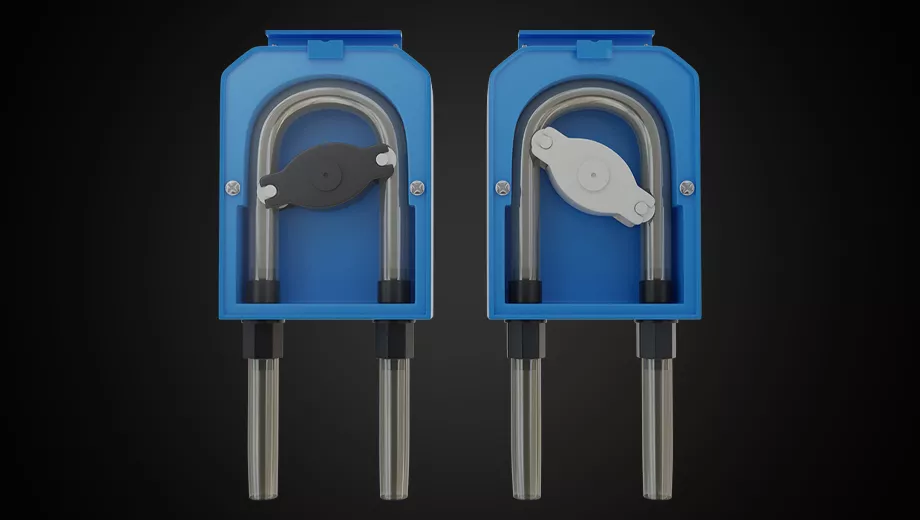

    • Prodose Yes
    • Composite material double filter on pump intake Yes

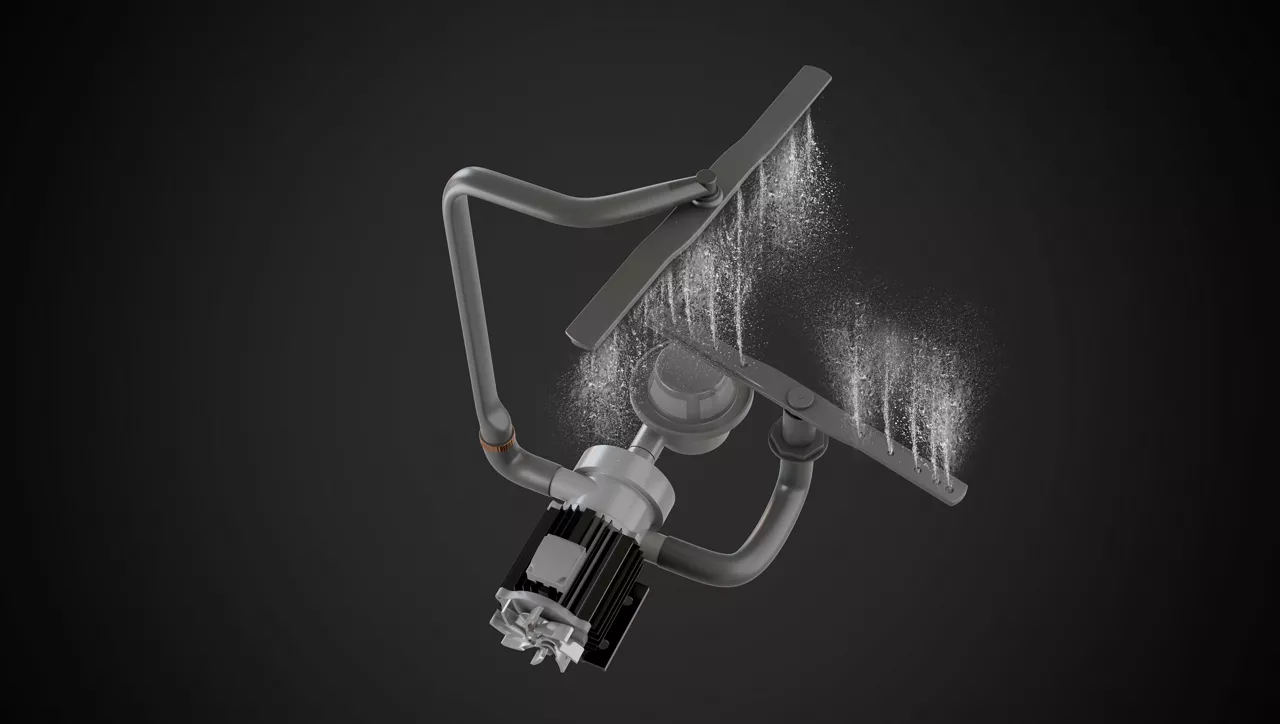

    • Wash system with DuoFlo pump Yes
    • Wash/Rinse with Lower Rotating Arms Yes
    • Archimedes Drain System Yes
    • Protect environment improvement system Yes
    • ProSmart electronic interface Yes
    • ProSmart LED type electronic interface Yes
    • No. of standard wash programmes 3
    • Double skin insulated door Yes
    • ProSelf - self clean cycle Yes
    • Drain Pump Optional
    • Special Cycles ProLong, Prowater, ProGlass, ProEco
    • Hygienic Wash Yes
  • Safety Features
    • ProStrain shock-proof composite material tank filter Yes
    • Shock Proof Plastic Pump Filter Yes
  • Technical Sepcifications
    • Water Consumption (L/Cycle) 2.5
    • Electric Connection (V/Hz/ph/N) 400/50/3/N
    • Cycles (secs) 3 (60 - 90 - 180)
    • Required Electric Power (Kw/Amp) 6.8/16
    • Required Water Pressure (Bar) 2 - 4
    • Required Water TDS 40 to 100ppm, Conductivity lower than 300 Micro Siemens
    • Rinse Temperature (°C) 80
    • Wash Temperature (°C) 60
  • Manufacturing,Packaging & Import Details
    • Importer's Details IFB Industried Ltd
    • Packer's Details Eurotec S.R.L
    • Country Of Origin Italy
