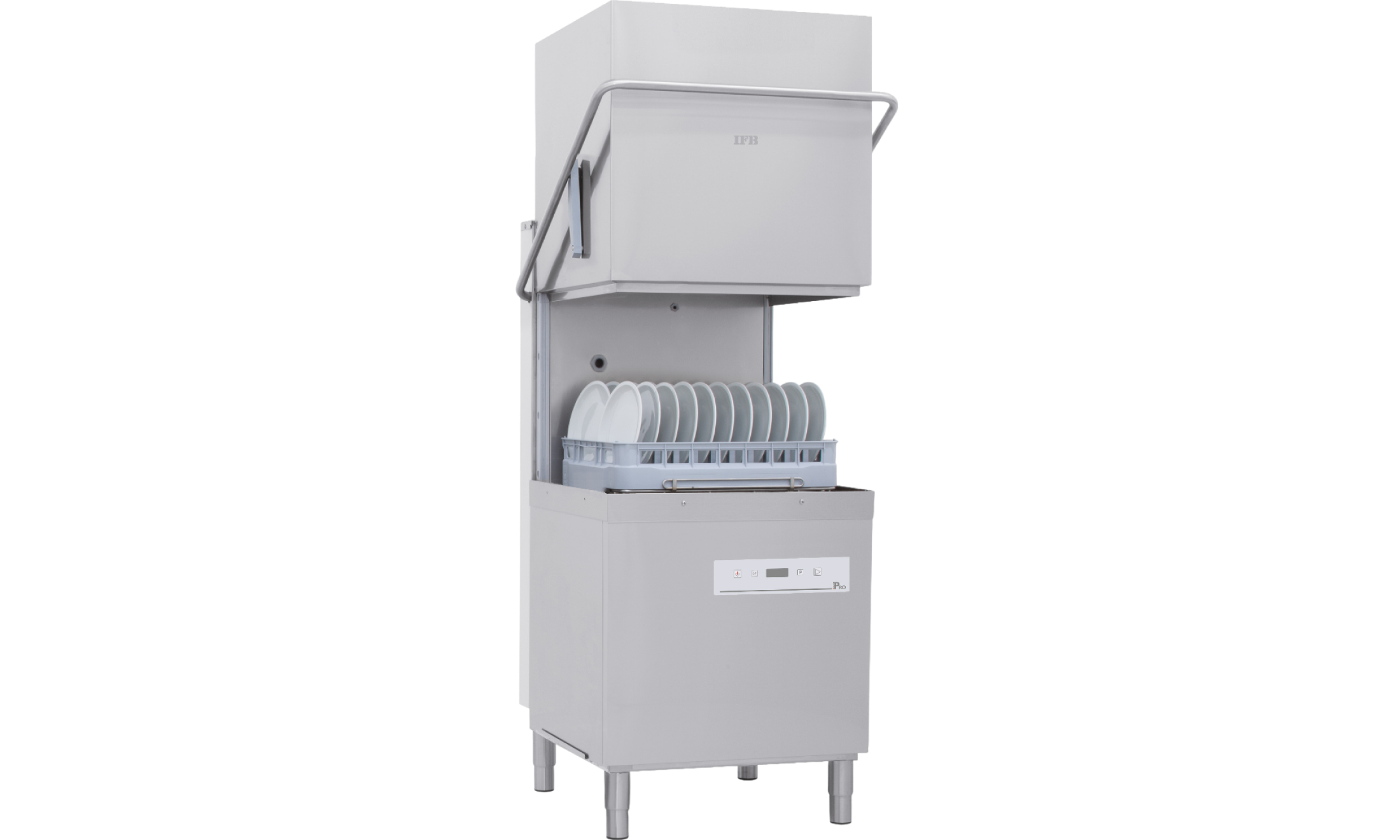

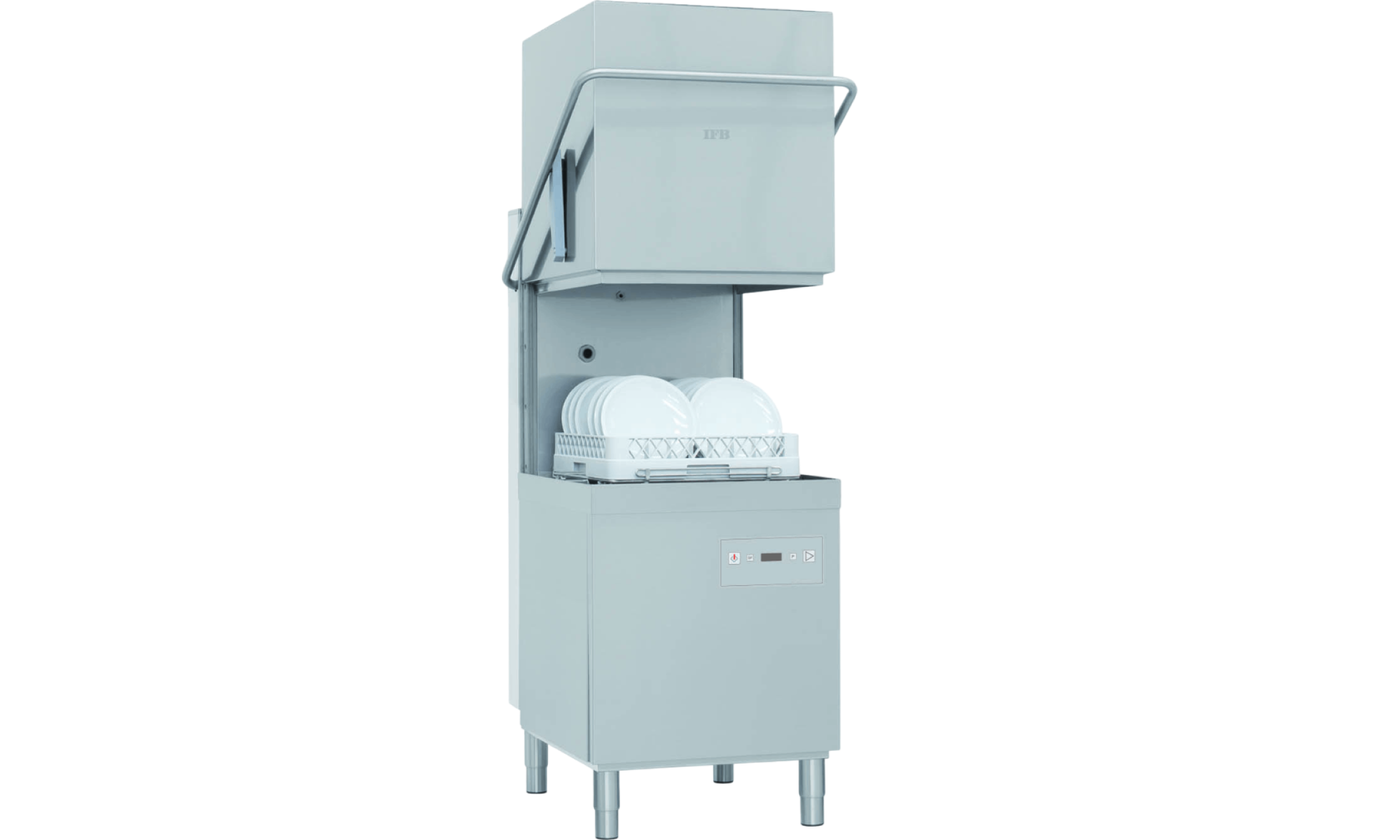

Pro Tech 813

The Hood dishwasher is packed with features such as hood opening of 40 cm, wash tank configuration which permits washing of gastronorm and euronorm trays and also uses a special 22-plate 50 x 50 wire rack that boosts theoretical productivity to around 1000 plates/hour. It features a fully moulded tank with ProStrain integral light composite material surface strainer, particularly resistant to impact and chemical attack. With a double filter on wash pump suction, it can be installed in a corner without the need for modifications or additional elements.
Product Manual Category Manual
Pro Tech 813

ProStainer

ProStrainer integral surface strainers are made of high-tech materials, are lighter than conventional steel filters and more resistant to chemical attack and impacts. They do not lose their shape or efficiency even if shaken or banged during cleaning, as opposed to former metal filters which tend to bend and deform, losing their filtering capacity, in a short time.

Pro Glide Hood

The hood slides smoothly on anti-friction guides and is activated by a system of levers, without buckling or jamming if the handle is grasped from a corner. The weight of the hood is counter-balanced and lifting force is reduced to a mere 3 kg, thus reducing operator fatigue and increasing productivity. The hood is of the double skin insulated type to reduce heat and noise emissions.

DuoFLo Pump

Conventional pumps distribute water through a T or Y connector. IFB's research has revealed that this method wastes 25-30% power. IFB Products eliminate this wastage with an innovative solution: one inlet but two outlets without any divider. This also results in a 50% reduction in noise. Effectively a 470W DuoFlo pump delivers the same performance as a conventional 650W pump. Thus, maximum efficiency is achieved along with minimum energy consumption.

Archimedes Drainage System

In a normal rinse cycle clean water is pumped into the tank. With a conventional gravity waste, the clean water floats above the heavier dirty water.This means three litres of clean water wastes one litre directly by drainage. Achimedes employs the principle of communicatin vessels to product a 67-85% increase in water used to regenerate detergent solution in the tank. The water is forced bottomwards, discharging part of the built up dairt particles. As a result, wash water soils more slowly, water referesh is less frequent and detergent concentration can be reduced by approximately by 10%.

Noiseless Operation

IFB glass washers and dishwashers produce upto four times less noise than other modesl. This is a result of a Duo Flo pump, partial or full double skin construction and thermo acoustic insulation in certain models than reduces noise by upto a further 25%. The electrical system too has been designed to minimise electromagnetic emissions to well below legal limits.

Prosmart Interface

Permits finger-tip control of glass washer main functions, a generously-sized four-digit display facilitates selection of the programs held in the memory and also displays wash and rinse temperatures and system self-diagnostic messages, to facilitate servicing, and the number for racks washed. Correct functioning of the machine can be monitored according to the colour (green, orange or red) of the Check-Bar while the Smart-Bar indicates current machine status (ready, heating, in use) and progress of the cycle.according to changes in colour and size. Functioning parameters and temperatures can be personalized and dispensers can be software-regulated, introducing the dose required directly in g/l.

NRG Heat Recovery System

Captures and condenses steam present after rinse. The heat recovered increases the temperature of the intake water by 25 °C. Eliminates the need for an external extraction hood, improves the working environment and also promotes considerable energy saving due to the almost 40% reduction in the rinse water temperature gradient that must be assured by the boiler.The entire process lasts only 30" at the end of the cycle and is fully automatic. Operator comfort is also enhanced as emission of saturated steam on opening the hood is eliminated.
*Images used are for representation purposes only

Specifications

  • General
    • Plate Rack (cm)Yes (50 x 50)
    • Flat Rack (35 x 35 cm)Yes, (50 x 50)
    • Cultery ContainerYes
    • Fill HoseYes
    • Drain HoseYes
  • Technical Sepcifications
    • Dimension (cm)64 x 74 x 148
    • Cycles (secs)3 ( 72 - 110 - 150)
    • Door ConstructionSingle Wall
    • Door Opening (cm)40
    • Electrical Connection (V/Hz/ph)400/50/3
    • General ConstructionSingle Wall
    • Max glass height (cm)38
    • Rack Size (cm)50 x 50
    • Water Consumption (L/Cycle)2.5
    Show more
    Show Less
  • Features
    • Archimedes Drain SystemYes
    • Drain PumpOptional
    • Easy Lift hoodYes
    • Fully Moulded TankYes
    • No. of standard wash programmes3
    • Prolong extra long wash programmeYes
    • ProSelf - self clean cycleYes
    • ProSmart LED type electronic interfaceYes
    • ProStrain shock-proof composite material tank filterYes
    • Protect environment improvement systemYes
    • Wash system with DuoFlo pump and equaliser armsYes
